Behind the module closet you still have room for a large bed. It is very suitable in combination with a VanEssa sleeping system and a rotary seat for the passenger seat.
You do not have to change anything in your car. The mounting and dismounting can be done in just a couple of minutes.
You can perfectly use our optional lateral for your laptop or as table for a meal. For VW T5/T6 with the original we have developed a special hanging table (choose in dropdown).

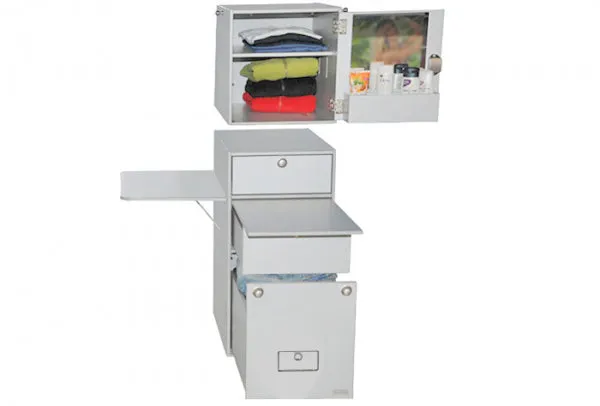

A capacious with an interior mirror is also available. It gives you additional storage room. There is a mirror and a small storage box attached to the closet door (for washing-up utensils, etc.). You also have two clothes rails that can be pulled out laterally. The top closet can be affixed to the surface of the module closet with two screws (choose in dropdown).
For more flexibility
Instead of the toilet you can put in a (choose in dropdown) in order to switch easily and fast between toilet use and a capacious storage room.
Alternately you can use the instead of the toilet (choose in dropdown).
You can reorder the storage insert at any time.
* If you wish to insert the cool box, the module has to be ordered with preparation for cool box. A later adaptation is not possible.
Details
The module is fastened behind the driver´s seat on existing fixation points. There is no adaptation on the car.
Installation and removal only takes a few minutes.
Compatible instantly with the following
VW T5 & T6 & T6.1 Multivan
VW T5 & T6 & T6.1 Transporter (with timber floor)
VW T6.1 California
Please send us a picture by Email or with image upload of the area behind the drivers seat for following vehicle types:
Volkswagen Transporter
Volkswagen Caravelle
Following Dropdown options have to be selected when ordering:
- desired decor
- lower drawer:
-
with toilet function: incl. camping toilet Dometic 976 and flap for flush cut into drawer front
(storage insert can still be used instead of the toilet) -
with toilet function and cool box drawer: toilet function descibed as above plus preparation for cool box Dometic CF-35
(if you choose the cool box drawer the back wall of the module is cut out so that the cool box can circulate)
- lateral table: optional addition of lateral table (depending on type of vehicle)
- storage insert: optional addition of storage insert in order to use the drawer for clothes, etc.
- top closet: optional addition of top closet
Measurements
module closet: length 40 cm, depth 58,5 cm, height 80,5 cm
folding table: length 58 cm, depth 40 cm
Beach table: length 55 cm, depth 40 cm (only possible for VW Beach / Startline with original mounting rail)
top closet: length 40 cm, depth 58,5 cm (narrowed to 50,5 cm on back side due to vehicle lining), height 41,5 cm
Weight
module closet: 28,5 kg
folding table: 1,7 kg
top closet: 11,0 kg

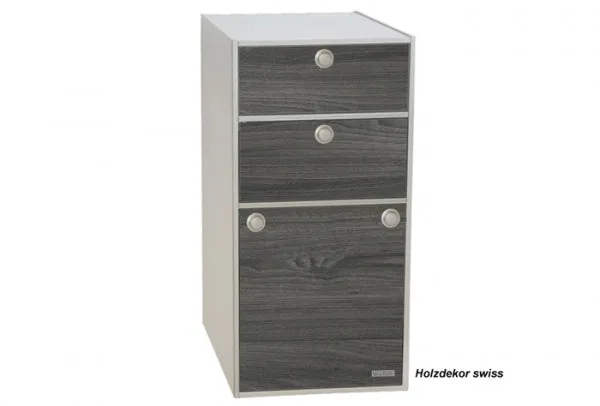

Decors

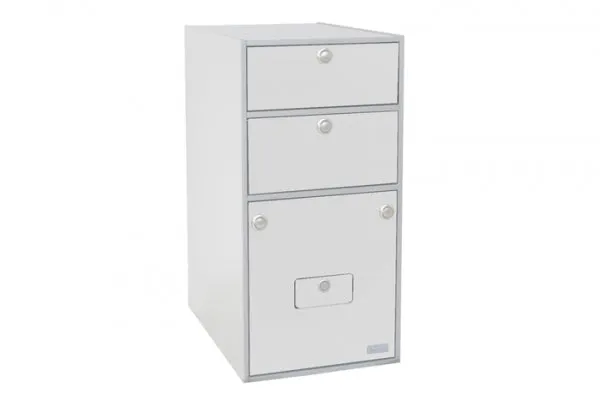

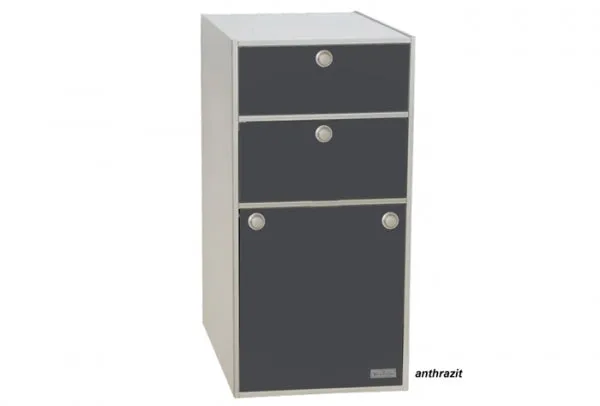

Our standard decor is Silver-grey. Anthracite and our Wood decors Swiss and Bulli are available against little surcharge.
Lower drawer:

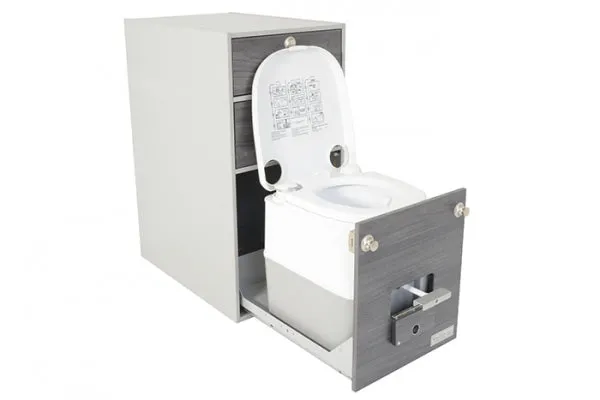

- extending drawer with camping toilet (removable)
- alternatively: storage insert and/or cool box (choose in dropdown)

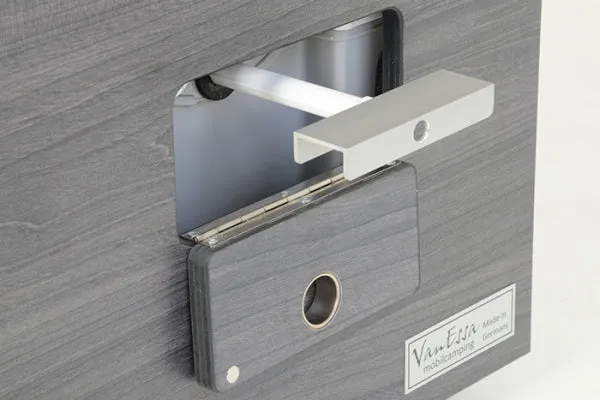

- opening flap for valve of toilet
- with two push locks on the lower drawer if it is used for a cool box (additional security for drawer due to increased weight)
Middle and upper drawers:
- storage drawers
- forward extending table
Fixation
Fixation behind driver´s seat (with T-screws in rail system, onto lashing strap loops, etc.)
Mounting material is included in delivery.
OPTIONS
VANITY UNIT -
SIDE TABLE
